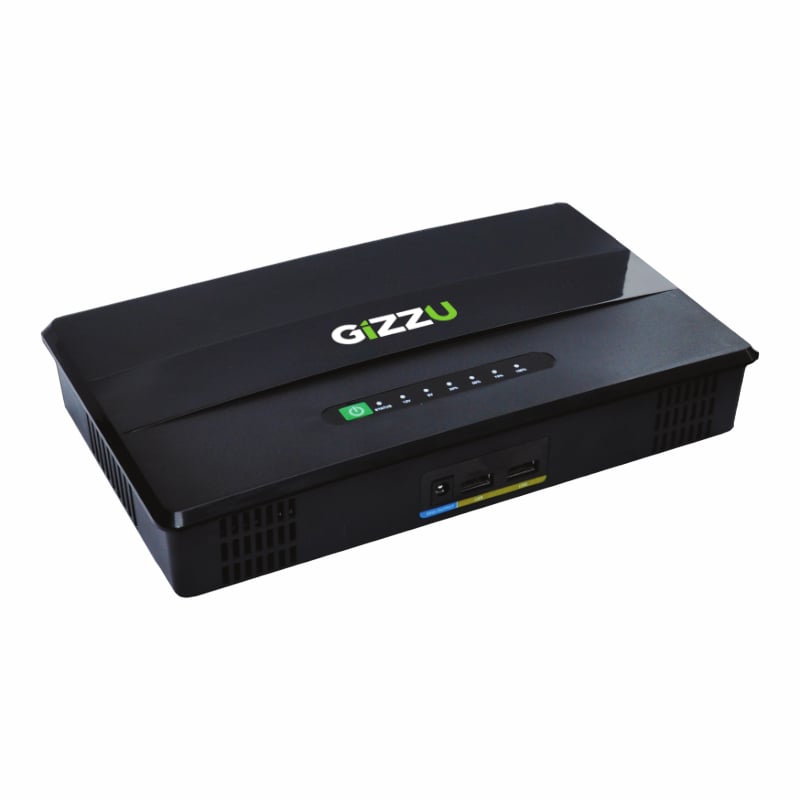

The Gizzu 60W Mini DC 69Wh UPS is simple to install and allows you to power various devices during a power outage. With multiple-voltage DC outputs, this UPS can power both your Router and ONU (Optical Network Unit) so you can continue browsing the web, working online, or streaming. CCTV cameras and VoIP phones can also be connected and powered via the Gigabit Power Over Ethernet (PoE) port. Charge mobile devices such as cell phones and tablets via USB. Featuring 12 high-capacity lithium-iron phosphate(LiFePO4) 21600mAh batteries which ensure a longer life span than traditional lithium-ion batteries.

Lithium Iron Phosphate (LiFePO4) batteries are safer thanks to their phosphate cathode cells, which make them much more stable & provide more cycles. This means LiFePO4 batteries can outlast regular lithium-ion batteries and traditional lead-acid batteries. It can safely power your ONU device for up to 23 hours, your router for up to 6.9 hours, or the combination of your router and an ONU device for up to 5.3 hours. This mini UPS also comes with safety protocols such as over-charge, over-discharge, and short-circuit protection.

Warning: Please ensure that the combined power draw of connected devices does not exceed 60W. Ensure the voltage of the device is connected to the correct voltage output before turning the UPS on. Failure to adhere to this warning may result in damage to the connected devices. Refer to your manual for additional safety information.

FEATURES

• Power your Router and ONU (Optical Network Unit) during power outages
• Keep your mobile devices charged with dual USB ports
• 69Wh High-capacity lithium-ion batteries
• Power your CCTV cameras and VoIP phones with Gigabit PoE
• Compatible with a wide range of routers
• Intelligent protective design with over-charge, over-discharge, and short-circuit protection

SPECIFICATIONS

• Input Voltage: 100 – 240V AC
• DC Output
  • 2 x 5V+USB (2A)
  • 1 x 9V/12V (selectable)(2A)
  • 4 x 12V (5A)
  • Power method: 4-pairs (1, 2+; 3, 6-)(4, 5+; 7, 8- )
• 1 x Solar Input
• Power Output: 60W
• Battery Capacity: 21600mAh
• Battery Information: 1800mAh x 12 (Lithium-iron LiFePO4)
• Total Watt Hours: 69Wh
• Estimated Recharges
  • Smart Phone (3500mAh): 7x
  • Tablet (7000mAh): 4x
  • Headlamp (1800mAh): 12x
• Estimated Run Time
  • ONU (3W): 23hrs
  • Router (10W): 6.9hrs
  • CCTV Cameras (10W): 6.9hrs
  • VoIP Phone (7W): 9.8hrs
• Dimensions: 25.8 x 15.2 x 4.6 cm
• Weight: 1110g
• Warranty: 12 Months

WHAT’S IN THE BOX

• Gizzu 60W Mini DC 69Wh UPS
• 1m AC Power Cable
• 2x 1m 2.5mm DC Power Cable
• 30cm DC Splitter Cable
• 5×2.1mm DC Adapter
• 4×1.7mm DC Adapter
• 3.5×1.35mm DC Adapter
• PoE-converter
• User Manual

Notes

Please ensure that the combined power draw of the connected device does not exceed 60W. Ensure the voltage of the device is connected to the correct voltage output before turning the UPS on. Failure to adhere to this warning may result in damage to the connected devices. Refer to your manual for additional safety information.

* - Some routers, APS and network devices require POE Power Method POE over only 2-Pairs, +(4,5) pins & -(7,8) pins. Please consult device manuals to ensure compatibility with this UPS before using it.
